Rackmounting DC-AC Sinewave Inverter

INV-P: Rackmounting DC-AC Sinewave Inverter
Max. Power Model 4kVA
Nom. Input Voltage 24 - 540VDC
Nom. Output Voltage 115 or 230VAC
Output Freq. 50 or 60Hz
Case Style Rack Mount
AC Bypass No
The INV-P range provides a true stabilised sinewave output controlled by a micro-processor. Units in this range are robust and extremely light, weighing between 7 and 11kgs. A variety of DC Inputs are available. The AC Output is provided via both a standard IEC socket and Phoenix-style connectors on most models.

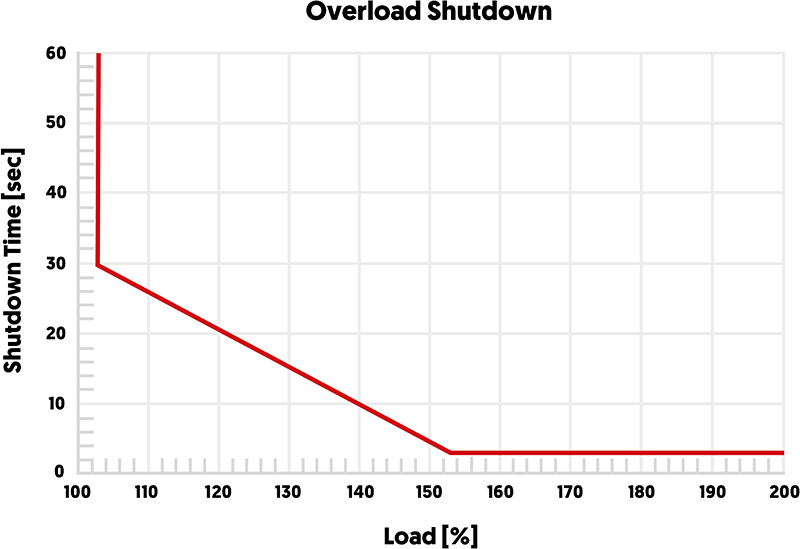

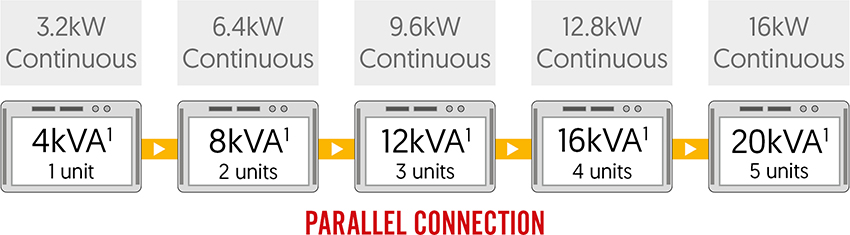

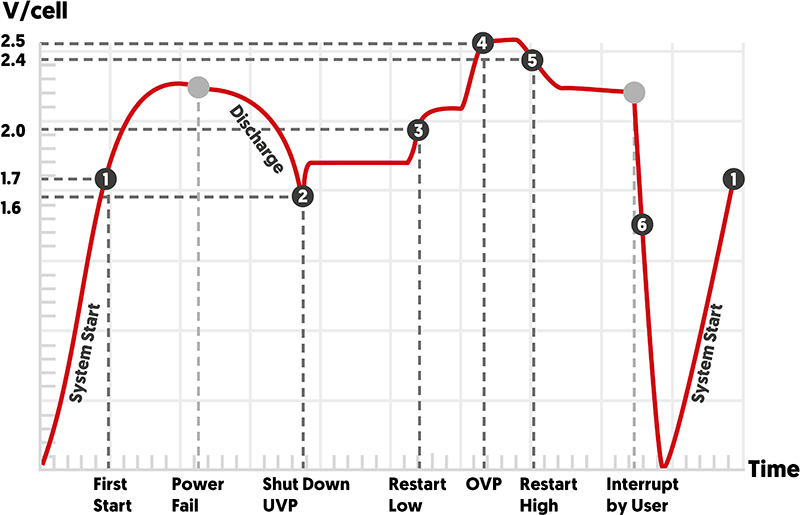

The user can easily adjust the protection limits and a variety of other parameters through the front panel. Up to five of these units can be operated in parallel.

The load current is automatically shared by each inverter. This ability to increase the output power ensures that the system can be expanded as needs dictate.

The wide operating temperature and excellent efficiency also help to ensure that this inverter range is ideal in numerous applications.
Did you know...
  • The INV-B product family provides inverter capability with bypass for downtime-free installations.

Product Family
 Part NumberMaximum PowerInput VoltageOutput VoltageOutput Frequency
INV-P 500-24500VA24VDC230VAC50Hz
INV-P 500-48-60500VA48/60VDC230VAC50Hz
INV-P 500-110500VA110VDC230VAC50Hz
INV-P 500-220500VA220VDC230VAC50Hz
INV-P 1000-241000VA24VDC230VAC50Hz
INV-P 1000-48-601000VA48/60VDC230VAC50Hz
INV-P 1000-721000VA72VDC230VAC50Hz
INV-P 1000-1101000VA110VDC230VAC50Hz
INV-P 1000-2201000VA220VDC230VAC50Hz
INV-P 2000-242000VA24VDC230VAC50Hz
INV-P 2000-48-602000VA48/60VDC230VAC50Hz
INV-P 2000-1102000VA110VDC230VAC50Hz
INV-P 2000-2202000VA220VDC230VAC50Hz
INV-P 4000-48-604000VA48/60VDC230VAC50Hz
INV-P 4000-1104000VA110VDC230VAC50Hz
INV-P 4000-2204000VA220VDC230VAC50Hz
INV-P 4000-5404000VA540VDC230VAC50Hz
Use the Add button to add a unit to your QuoteCart.
You can check your QuoteCart by hovering your mouse over the "QuoteCart" button.

Different output ranges and application/user specific options are possible. Please contact ETPS to discuss your requirements.
