High Density DC Power Source

LAB-DSP: High Density DC Power Source
Max. Voltage Model 600V
Min. Power Model 750W
Max. Power Model 3kW
Technology Switch Mode
Case Style Rack Mount

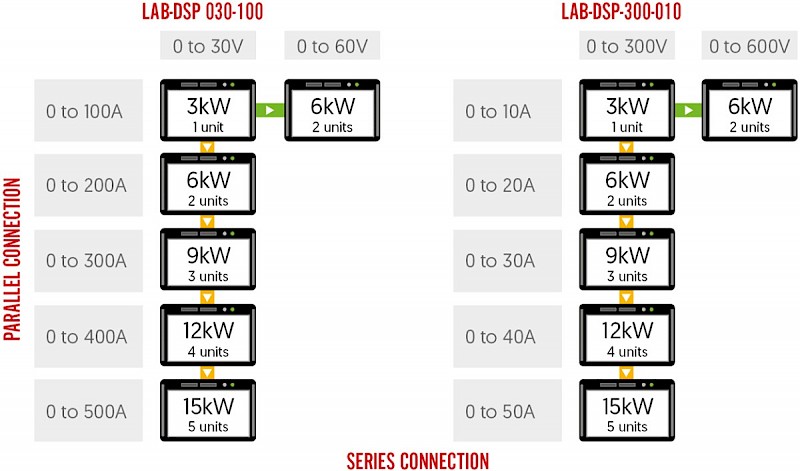

The LAB-DSP product family has 45 models covering a range of 6V to 600V and 1A to 400A. Outputs are available at 750W, 1500W and 3000W. All units operate from a single phase wide AC input with active PFC. Up to 5 identical units can connected in parallel to provide up to 15kW output power. The required output current is actively shared when the units are connected in parallel via the optional master/slave card.

For systems requiring high reliability the parallel feature provides redundancy as should one unit fail the others will continue to operate. Series operation of 2 units is also possible. Over-voltage and over-current protection limits can be adjusted to help safeguard sensitive loads. Transient response times when operating in constant voltage are better then 2ms with some models <1ms. The actual voltage ramp up and ramp down times can be adjusted from the front panel. Settings up to 99.9sec are possible.

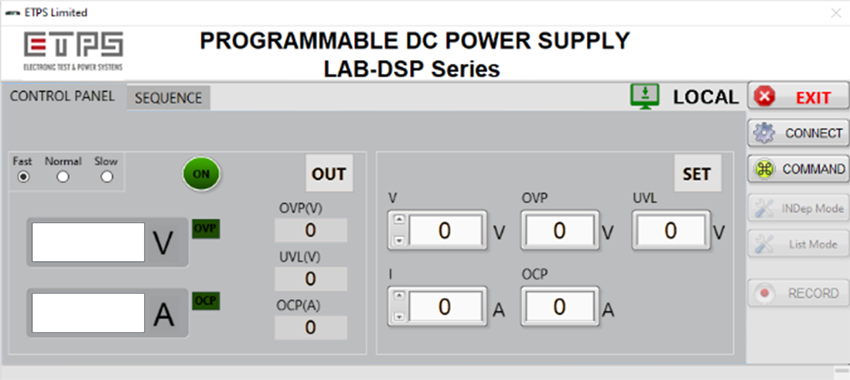

Along with front panel control and display, RS-485 and analogue interfaces are built-in as standard. An interlock function is provided enabling the connection of an external emergency stop or output off switch. The high resolution (HR) option upgrades the standard 4-digit display to a 5-digit version. In addition to the standard interfaces GPIB can also be optionally provided. This series of power supplies can be found in a very wide range of market sectors and applications including: Aerospace, telecom, ATE, quality control, chemical processing, water purification, electroplating, sputtering and coating, semiconductor manufacture, burn-in along with general R&D.

Did you know...
  • The LAB-DSP 750W models are incredibly compact, and only take up half of a 1Ux19" rack space.
Product Family
 Part NumberPowerVoltageCurrent
LAB-DSP 006-100750W0 - 6V0 - 100A
LAB-DSP 008-090750W0 - 8V0 - 90A
LAB-DSP 012.5-060750W0 - 12.5V0 - 60A
LAB-DSP 020-038750W0 - 20V0 - 38A
LAB-DSP 030-025750W0 - 30V0 - 25A
LAB-DSP 040-019750W0 - 40V0 - 19A
LAB-DSP 050-015750W0 - 50V0 - 15A
LAB-DSP 060-12.5750W0 - 60V0 - 12.5A
LAB-DSP 080-09.5750W0 - 80V0 - 9.5A
LAB-DSP 100-07.5750W0 - 100V0 - 7.5A
LAB-DSP 150-005750W0 - 150V0 - 5A
LAB-DSP 300-02.5750W0 - 300V0 - 2.5A
LAB-DSP 350-02.1750W0 - 350V0 - 2.1A
LAB-DSP 450-01.7750W0 - 450V0 - 1.7A
LAB-DSP 600-01.25750W0 - 600V0 - 1.25A
LAB-DSP 006-2001500W0 - 6V0 - 200A
LAB-DSP 008-1801500W0 - 8V0 - 180A
LAB-DSP 012.5-1201500W0 - 12.5V0 - 120A
LAB-DSP 020-0761500W0 - 20V0 - 76A
LAB-DSP 030-0501500W0 - 30V0 - 50A
LAB-DSP 040-0381500W0 - 40V0 - 38A
LAB-DSP 050-0301500W0 - 50V0 - 30A
LAB-DSP 060-0251500W0 - 60V0 - 25A
LAB-DSP 080-0191500W0 - 80V0 - 19A
LAB-DSP 100-0151500W0 - 100V0 - 15A
LAB-DSP 150-0101500W0 - 150V0 - 10A
LAB-DSP 300-0151500W0 - 300V0 - 5A
LAB-DSP 350-04.21500W0 - 350V0 - 4.2A
LAB-DSP 450-03.41500W0 - 450V0 - 3.4A
LAB-DSP 600-02.51500W0 - 600V0 - 2.5A
LAB-DSP 006-4003000W0 - 6V0 - 400A
LAB-DSP 008-3603000W0 - 8V0 - 360A
LAB-DSP 012.5-2403000W0 - 12.5V0 - 240A
LAB-DSP 020-1503000W0 - 20V0 - 150A
LAB-DSP 030-1003000W0 - 30V0 - 100A
LAB-DSP 040-0753000W0 - 40V0 - 76A
LAB-DSP 050-0603000W0 - 50V0 - 60A
LAB-DSP 060-0503000W0 - 60V0 - 50A
LAB-DSP 080-0383000W0 - 80V0 - 50A
LAB-DSP 100-0303000W0 - 100V0 - 38A
LAB-DSP 150-0203000W0 - 150V0 - 30A
LAB-DSP 300-0103000W0 - 300V0 - 20A
LAB-DSP 350-08.43000W0 - 350V0 - 8.4A
LAB-DSP 450-06.73000W0 - 450V0 - 6.7A
LAB-DSP 600-0053000W0 - 600V0 - 5A
Use the Add button to add a unit to your QuoteCart.
You can check your QuoteCart by hovering your mouse over the "QuoteCart" button.

Different output ranges and application/user specific options are possible. Please contact ETPS to discuss your requirements.
