Battery Chargers

ETPS have been trusted for many years to supply reliable battery and super capacitor chargers, where failure is not an option.

Our range of heavy duty chargers support Li-ion, Ni-Cd, Ni-MH and lead acid chemistries among others. Intelligent battery chargers with automatic charge current adjustment and temperature compensation are offered. Controllers are available which facilitate battery management with load control.

If you have a non-standard battery voltage from 15V up to 1500V, output nominals from the high power BC-HP-E range can be modified free-of-cost. So for example, if you required an 850Vdc charger at 100kW, then we could provide this with no impact on price or lead time.

An inbuilt function generator is available for the high power BC-TC which allows a specific current vs voltage profile to be provided for sensitive battery loads. The same function generator allows the modular charger to deliver user defined short bursts of energy for pulsed charging.

Optional extras are available for selected models, such as a wide AC or a DC input for unusual line conditions. Flight case integrations are possible where mobile charging is required. Rugged units are available where the charger is to be used in a harsh environment that is likely to experience shock, vibration and humidity.

Read more Close

Did you know...

  • A full range of DC loads are available with adjustable load on/load off voltage values. This prevents damaging deep discharge of connected battery packs.
  • Combined charger/discharger units can be provided. For more information contact us.
  • If you require more voltage, HTP-LPx capacitor chargers are available up to 100kV.
Can't find what you're looking for?
Get in touch or give us a call on +44 (0)1246 452909
Quick View

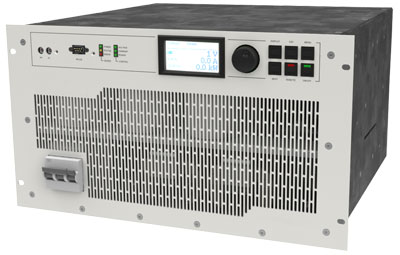

BC-TC

BC-TC

High Power Modular Battery Chargers

Min Max
Power: 0 to 10kW 0 to 2MW This maximum is achieved by using units in master-slave.
Voltage: 0 to 52VDC 0 to 1500VDC This maximum is achieved by using units in master-slave.
Current: 0 to 13A 0 to 44800A This maximum is achieved by using units in master-slave.

Download datasheet

Quick View

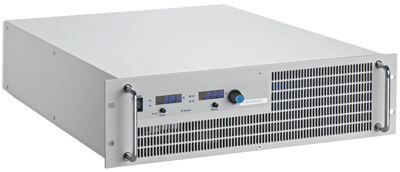

BC-HP-E

BC-HP-E

Programmable High Power Chargers

Min Max
Power: 0 to 3kW 0 to 504kW Non-standard builds are possible, contact us for information.
Voltage: 0 to 15VDC 0 to 1500VDC
Current: 0 to 4.7A 0 to 18000A

Download datasheet

Quick View
BC-REC-8400

BC-REC-8400

AC-DC Converter

Min Max
Power: 4.2kW 67kW This maximum is achieved by using units in master-slave.
Voltage: 20 to 30VDC 50 to 75VDC
Current: 70A 2800A This maximum is achieved by using units in master-slave.

Download datasheet

Quick View

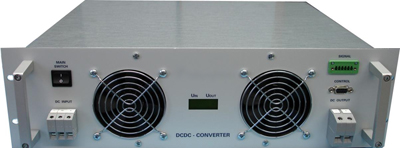

BC-5000

BC-5000

Battery Charger

Min Max
Power: 5kW 5kW
Voltage: 48 to 58VDC 48 to 58VDC
Current: 100A 100A

Download datasheet

Quick View

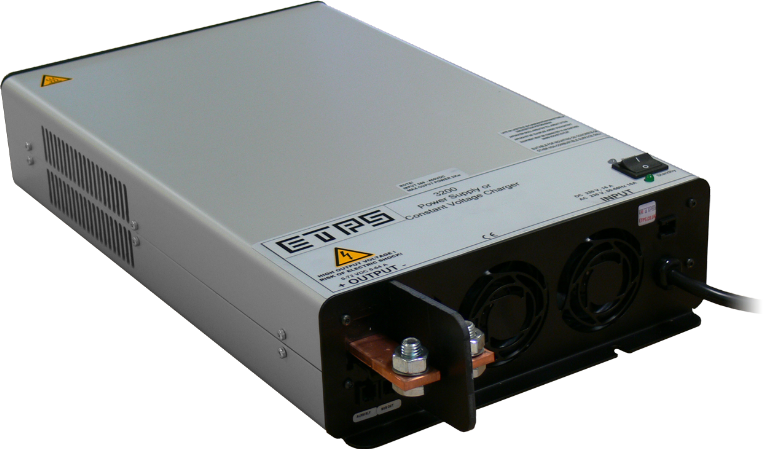

BC-ZAT

BC-ZAT

Battery Charger

Min Max
Power: 800W 3.2kW
Voltage: 3.3 to 18VDC 109.6 to 287.7VDC
Current: 0 to 7.5A 0 to 200A

Download datasheet

Quick View

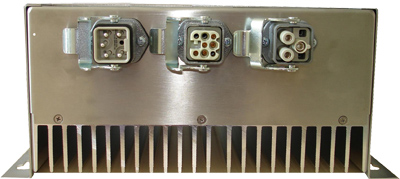

BC-900-K2

BC-900-K2

DC-DC Converter for Ultra Capacitor Charging

Min Max
Power: 900W 1.45kW
Voltage: 10 to 30VDC 10 to 30VDC
Current: 30A 50A

Download datasheet

Quick View

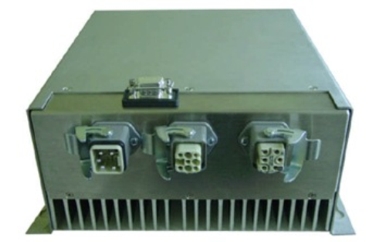

BC-900-K1

BC-900-K1

DC-DC Converter for Battery Charging

Min Max
Power: 900W 900W
Voltage: 10 to 30VDC 10 to 30VDC
Current: 30A 30A

Download datasheet
