Bidirectional DC

Each bidirectional DC system operates as either a programmable power supply or an electronic load. We hold numerous models in stock with various power, current and voltage outputs.

The all-in-one approach allows you to test almost any DC source or sink, as high dynamics enable users to quickly switch between quadrants. When operating as a load, any excess sink energy is regenerated back to the grid.

Each rental system comes with a simple and intuitive operating GUI as standard. Live values of the power system are displayed graphically along with any warning and error messages. The software provides a variety of second level parameters, ideal for users who like to optimise their test processes.

Application specific GUIs are also available, with pre-installed tests for common applications. These include battery pack emulation, super capacitor simulation, battery pack cycling and photovoltaic simulation. Drive cycle tests can also be implemented, with the ability to import and recreate data previously obtained from a test track.

Modules are mounted into flight cases with electrical integrations. A status indicator alerts users of any residual energy on the DC link greater than 15V or 30V (model dependant). This operates even if the mains power is turned off. Another indicator illuminates to show the rotation of the AC input voltage is correct. Panel mounted DC sockets are provided for convenience.

Read more Close

Did you know...

  • We also provide a selection of new bidirectional DC systems.
  • If you only require only source functionality, then we have a dedicated range of rental DC power supplies.
  • We also have a selection of rental heat dissipative DC electronic loads with sink only operation.
Can't find what you're looking for?
Get in touch or give us a call on +44 (0)1246 452909
Quick View

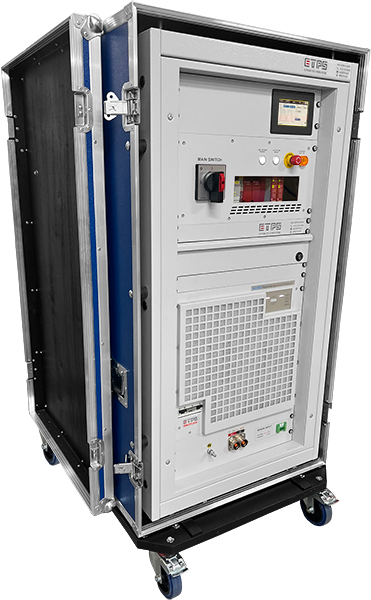

G5-RSS

G5-RSS

HV Bidirectional DC Systems up to 216kW

Min Max
Power: 0 to 54kW 0 to 216kW
Voltage: 0 to 1000V 0 to 2000V Configurations >1500V are possible with a centre tapped earth.
Current: 0 to 162A 0 to 648A

Download datasheet

Quick View

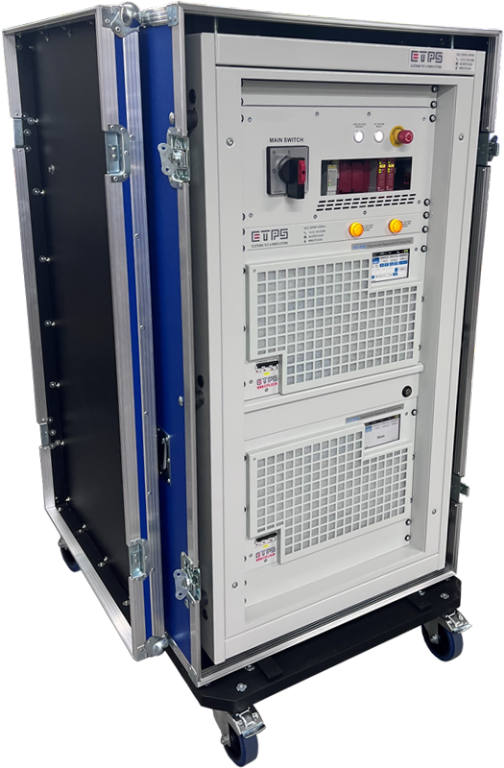

G5-RSS-HC

G5-RSS-HC

High Current High Power Bidirectional DC

Min Max
Power: 0 to 36kW 0 to 72kW
Voltage: 0 to 80V 0 to 160V
Current: 0 to 1352A 0 to 2704A

Download datasheet

Quick View

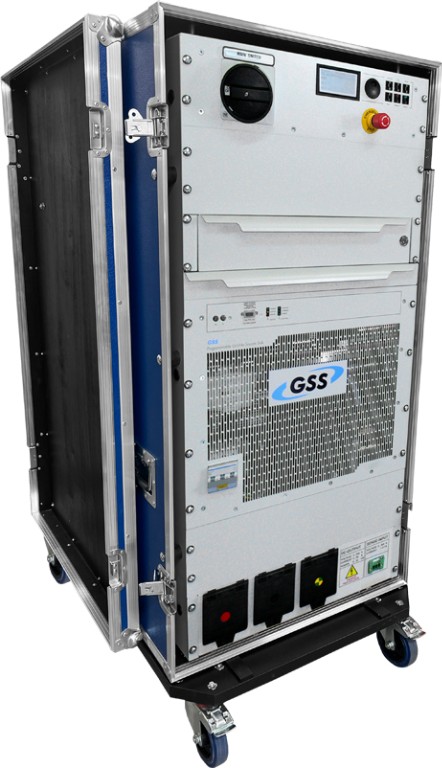

LAB-GSS

LAB-GSS

High Current Bidirectional DC Systems

Min Max
Power: 0 to 32kW 0 to 64kW
Voltage: 0 to 65V 0 to 65V
Current: 0 to 600A 0 to 1200A

Download datasheet
