Four Quadrant Systems

With a four quadrant system, the research possibilities are without bounds. The programmable nature of each unit allows virtually every sector of electronics to be researched.

A four quadrant power system can operate as either an AC power supply or an AC load. This is particularly useful when researching and testing grid related products with bidirectional AC power flows. When operating as a load, any energy sunk is regenerated back to the grid.

Where simple AC power testing is required, the single phase EAC-ABI and three phase EAC-TABI are the perfect choices. Each system comes built in its own freestanding cabinet and is programmable for voltage and frequency. A TFT front panel is provided which displays a variety of test and measurement functions instantaneously.

For more complex research requirements, then the modular EAC-ACS-4Q is ideal. Each phase is individually programmable for voltage/current limits, as well as being able to operate as a DC source or a DC load. This extensive functionality allows for virtually any power source or load to be tested using one system. A selection of software is available including a Fourier tool and a grid simulation GUI.

The flexible nature of our four quadrant systems means that they can be found across a wide range of industries and applications. Typical uses include single and three phase motor tests, aerospace electronics trials, grid-tied inverter analysis, EMC characterisation and more.

Read more Close

Did you know...

  • RLC load mode software is available for the EAC-ACS-4Q which enables users to simulate impedance for anti-islanding tests.
  • Special wide bandwidth transformers are available per phase, allowing non-standard high voltage asymmetric conditions. Contact us for more information.
  • We also provide a dedicated selection of bidirectional DC source/sinks.
Can't find what you're looking for?
Get in touch or give us a call on +44 (0)1246 452909
Quick View

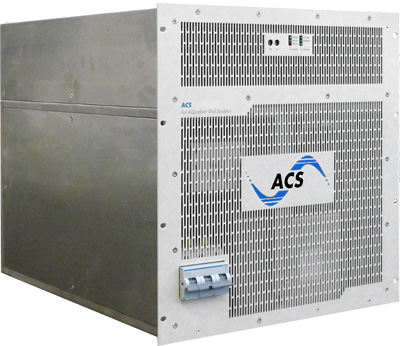

EAC-ACS-4Q

EAC-ACS-4Q

Grid-Tied 4 Quadrant Power Supply

Min Max
Power: 0 to 30kVA 0 to 1000kVA This maximum is achieved by using units in master-slave.
Voltage: 3 × 0 to 305VRMS 3 × 0 to 305VRMS
Current: 3 × 0 to ±43A 3 × 0 to ±1440A This maximum is achieved by using units in master-slave.

Download datasheet

Quick View

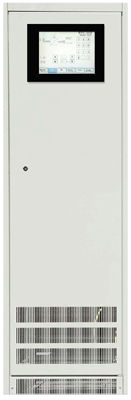

EAC-TABI

EAC-TABI

Bidirectional Three Phase AC Source

Min Max
Power: 0 to 10kVA 0 to 500kVA
Voltage: 3 × 8 to 150VRMS 3 × 30 to 600VRMS
Current: 3 × ±9.6A 3 × ±1924.5A

Download datasheet

Quick View
EAC-ABI

EAC-ABI

AC Bidirectional Single Phase Systems

Min Max
Power: 0 to 10kVA 0 to 200kVA
Voltage: 3 to 150VRMS 12 to 600VRMS
Current: ±16.6A ±1333.3A

Download datasheet
